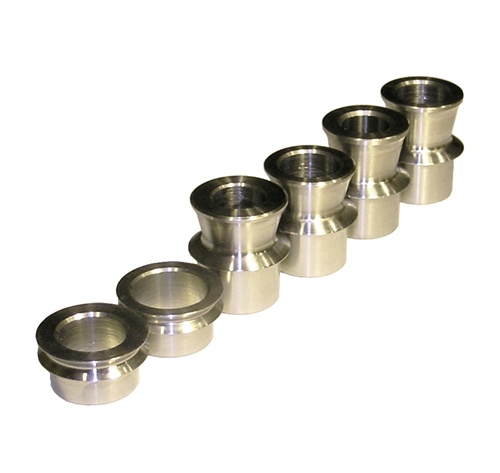

1.0 " Made in USA stainless steel high misalignments
High angle misalignment stainless steel spacers are a necessary component when using heim joints and trying to achieve extreme amounts of travel. Misalignments are measured by the hole size in the heim joint or uniball, bolt size through the center of the



Alternative Views:





Product Code: MA1.0

Choose your 1.0 high misalignment

1.0 high misalignment options*:


Qty:
Description

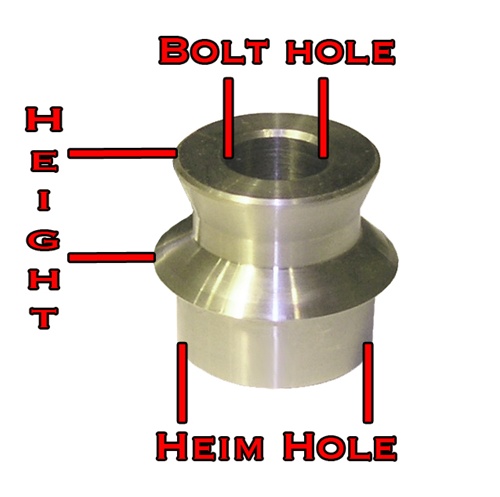

High angle misalignment stainless steel spacers are a necessary component when using heim joints and trying to achieve maximum amounts of travel. Misalignments are measured by the hole size in the heim joint or uniball, bolt size through the center of the misalignment and the height of the misalignment spacer. Sold each. 2 are required per heim. If you need other sizes in 5/8", 3/4", 7/8" or 1.5", Click on the size you need.
Part #
Heim joint hole
MA bolt hole
MA Height

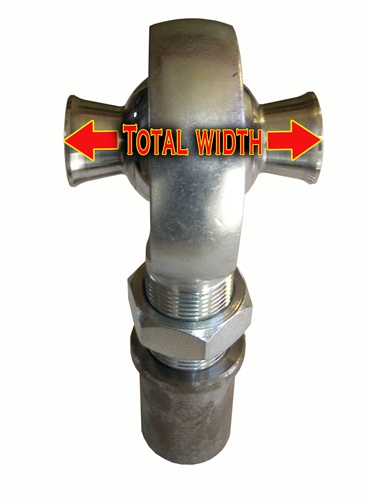

Total width
 MA1.0X1/2X.687 1.0" 1/2" .687"2.750
 MA1.0X5/8X.325 1.0" 5/8" .325" 2.125
 MA1.0X5/8X.500
 1.0" 5/8" .500"2.375
 MA1.0X5/8X.687#6
 1.0" 5/8" .687"2.750
 MA1.0X5/8X.812 1.0" 5/8"  .812"3.000
 MA1.0X3/4X.250 1.0" 3/4" .250" 1.865
 MA1.0X3/4X.315 1.0" 3/4" .315"1.965
 MA1.0X3/4X.3701.0"3/4".370"2.125
 MA1.0X3/4X.6251.0" 3/4".6252.625
 MA1.0X3/4X.687#7 1.0" 3/4" .687"2.750
 MA1.0X3/4X.715 1.0" 3/4" .715"2.800
 MA1.0X3/4X.750 1.0"  3/4" .750"2.870
 MA1.0X3/4X.812 1.0"  3/4" .812"3.000
 MA1.0X7/8X.2501.0"7/8".250"1.875
 MA1.0X7/8X.3121.0"7/8".312"2.010
 MA1.0X7/8X.3751.0"7/8".375"2.125
