  Home > Suspension Front > A-arm spindles >

  3/4" Made in USA stainless steel high misalignments
  High angle misalignment stainless steel spacers are a necessary component when using heim joints and trying to achieve extreme amounts of travel. Misalignments are measured by the hole size in the heim joint or uniball, bolt size through the center of the

Alternative Views:



Product Code: MA3-4

Choose your 3/4 high misalignment

3/4 high misalignment options*:

Qty:
Description

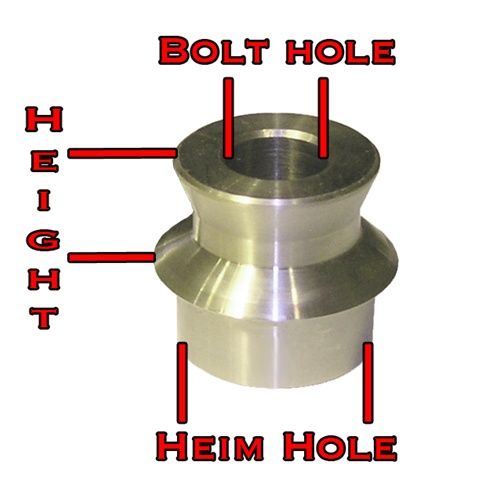

High angle misalignment stainless steel spacers are a necessary component when using heim joints and trying to achieve extreme amounts of travel. Misalignments are measured by the hole size in the heim joint or uniball, bolt size through the center of the misalignment and the height of the misalignment spacer. Sold each. 2 are required per heim. If you want other sizes in 5/8", 7/8", 1.0" or 1.5", then click on the size you need.
Part #
Heim joint hole
MA bolt hole
MA Height
Total width
 MA3/4X1/2X.2503/4" 1/2" .250"1.375
 MA3/4X1/2X.475(1/2)3/4" 1/2" .475" 1.850
 MA3/4X1/2X.4933/4" 1/2" .493"1.850
 MA3/4X1/2X.5623/4" 1/2" .562"2.000
 MA3/4X1/2X.6253/4" 1/2" .625" 2.125
 MA3/4X1/2X.6873/4" 1/2" .687" 2.249
 MA3/4X9/16X.6253/4"9/16"
.625"2.125
 MA3/4X5/8X.2503/4" 5/8" .250" 1.375
 MA3/4X5/8X.5003/4" 5/8" .500"1.825
 MA3/4X5/8X.5623/4" 5/8" .562"2.000
 MA3/4X5/8X.6253/4" 5/8".625"2.175
