3 inch and 2 inch raised disc and drum ball joint spindles for VW Volkswagen

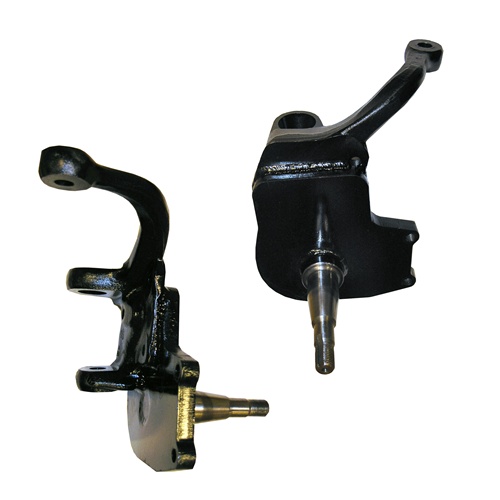

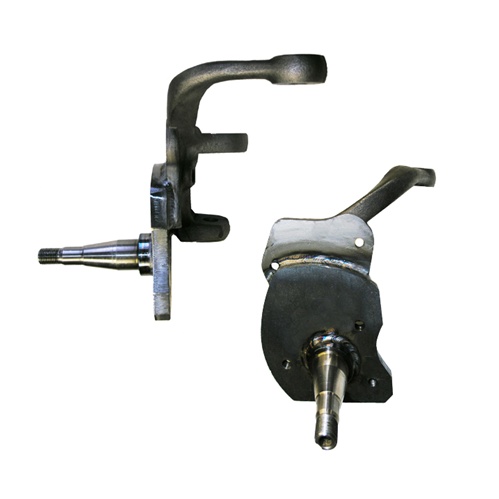

This is a pair of 3 inch or 2 inch raised drum or disc brakes spindles for ball joint VW Volkswagen Bug and Standard Beetle (1966-1977). They will work with stock vw 4 bolt and 5 bolt drums. These spindles are tig welded, not mig welded. We use a factory

Alternative Views:


Our Price:$319.00



Free Shipping
Product Code: RAISEDSPINDLES

Choose your raised spindle

Ball joint lifted spindle options*:


Qty:
Description

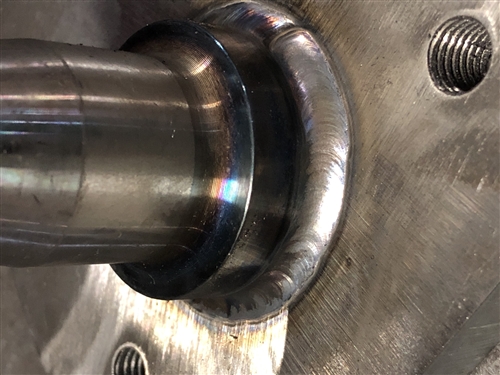

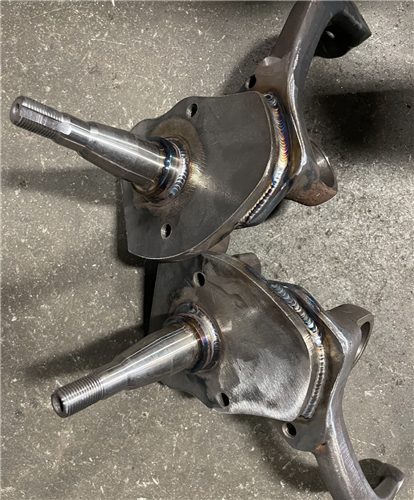

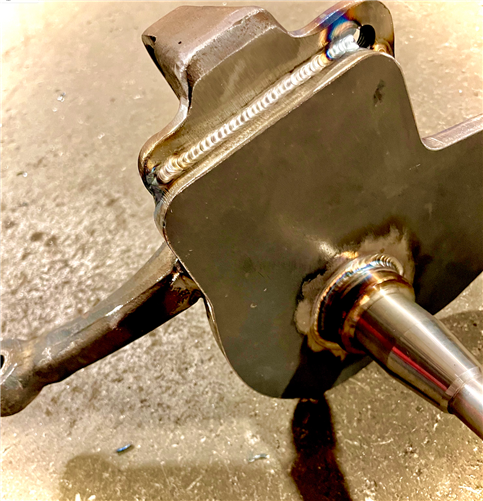

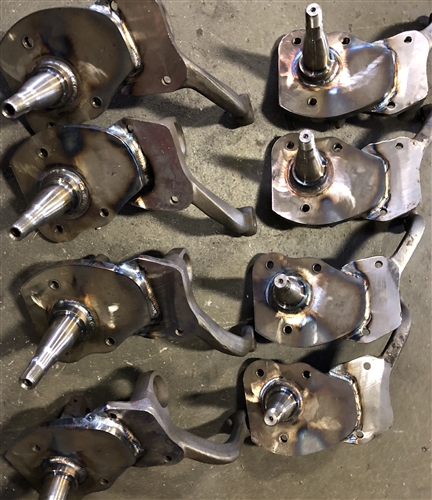

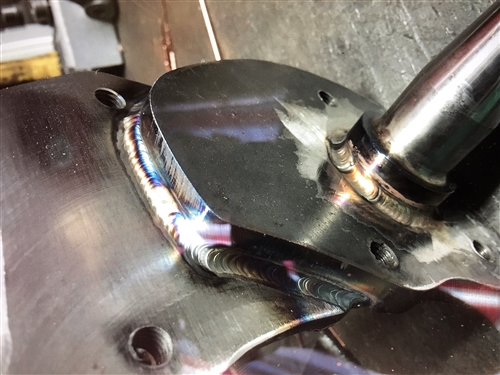

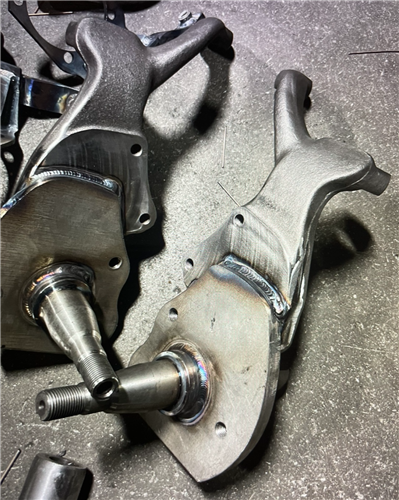

This is a pair of 3 inch or 2 inch raised drum or disc brakes spindles for ball joint VW Volkswagen Bug and Standard Beetle (1966-1977). They will work with stock vw 4 bolt and 5 bolt drums. These spindles are tig welded, not mig welded. We use a factory VW Volkswagen spindle, then machine it flat to accept a new laser cut plate and tig weld it together with a new chromoly stub spindle that has a provision for speedometer cable. These spindle are made for the late model inner wheel bearings, grease seals and tie rod ends with 19mm nuts. If you have 1966 thru mid 1968 you will have to change those parts. These will raise you car 2 to 3 inches and without your car riding any stiffer. This VW Beetle has a stock beam with 3 inch raised spindles installed. No lift kit or raised beam.
