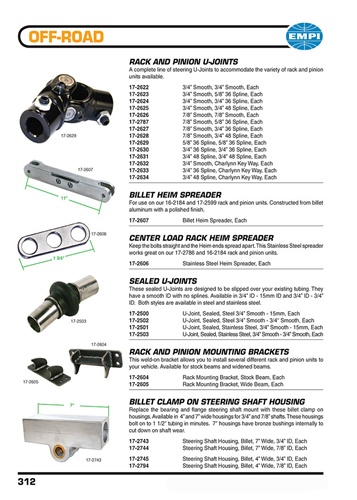

Rack and pinion u joints, billet heim spreader, sealed u joints, mounting brackets and billet clamp on steering shaft housings for VW Volkswagen.

Rack and pinion u-joints
A complete line of steering U-Joints to accommodate the variety of rack and pinion units available.

17-2622 3/4” Smooth, 3/4” Smooth, Each
17-2623 3/4” Smooth, 5/8” 36 Spline, Each
17-2624 3/4” Smooth, 3/4” 36 Spline, Each
17-2625 3/4” Smooth, 3/4” 48 Spline, Each
17-2626 7/8” Smooth, 7/8” Smooth, Each
17-2787 7/8” Smooth, 5/8” 36 Spline, Each
17-2627 7/8” Smooth, 3/4” 36 Spline, Each
17-2628 7/8” Smooth, 3/4” 48 Spline, Each
17-2629 5/8” 36 Spline, 5/8” 36 Spline, Each
17-2630 3/4” 36 Spline, 3/4” 36 Spline, Each
17-2631 3/4” 48 Spline, 3/4” 48 Spline, Each
17-2632 3/4” Smooth, Charlynn Key Way, Each
17-2633 3/4” 36 Spline, Charlynn Key Way, Each
17-2634 3/4” 48 Spline, Charlynn Key Way, Each

BILLET HEIM SPREADER
For use on our 16-2184 and 17-2599 rack and pinion units. Constructed from billet aluminum with a polished finish.

17-2607 Billet Heim Spreader, Each

CENTER LOAD RACK HEIM SPREADER
Keep the bolts straight and the Heim ends spread apart. This Stainless Steel spreader works great on our 17-2786 and 16-2184 rack and pinion units.

17-2606 Stainless Steel Heim Spreader, Each

SEALED U-JOINTS
These sealed U-Joints are designed to be slipped over your existing tubing. They have a smooth ID with no splines. Available in 3/4” ID - 15mm ID and 3/4” ID - 3/4” ID. Both styles are available in steel and stainless steel.

17-2500 U-Joint, Sealed, Steel 3/4” Smooth - 15mm, Each
17-2502 U-Joint, Sealed, Steel 3/4” Smooth - 3/4" Smooth, Each
17-2501 U-Joint, Sealed, Stainless Steel, 3/4” Smooth - 15mm, Each
17-2503 U-Joint, Sealed, Stainless Steel, 3/4” Smooth - 3/4” Smooth, Each

RACK AND PINION MOUNTING BRACKETS
This weld-on bracket allows you to install several different rack and pinion units to your vehicle. Available for stock beams and widened beams.

17-2604 Rack Mounting Bracket, Stock Beam, Each
17-2605 Rack Mounting Bracket, Wide Beam, Each

BILLET CLAMP ON STEERING SHAFT HOUSING
Replace the bearing and flange steering shaft mount with these billet clamp on housings. Available in 4” and 7” wide housings for 3/4” and 7/8” shafts. These housings bolt on to 1 1/2" tubing in minutes. 7" housings have bronze bushings internally to cut down on shaft wear.

17-2743 Steering Shaft Housing, Billet, 7” Wide, 3/4” ID, Each
17-2744 Steering Shaft Housing, Billet, 7” Wide, 7/8” ID, Each
17-2745 Steering Shaft Housing, Billet, 4” Wide, 3/4” ID, Each
17-2794 Steering Shaft Housing, Billet, 4” Wide, 7/8” ID, Each
