Merged header sedan exhaust and phat boy mufflers for VW Volkswagen
Merged header sedan exhaust and phat boy mufflers for VW Volkswagen COMPETITION MERGED EXHAUST SYSTEM This is the exhaust system for the serious racer. A true merged exhaust. Four 1 5/8" large diameter mandrel bent tubes are cut and fitted into a long mer



Alternative Views:


These are discounted prices for Online Website orders only.
For Phone-in orders, Mail-in orders and Walk-in store prices,
add an additional 13% to the Online price


Product Code: PAGE127

Choose your parts page 127

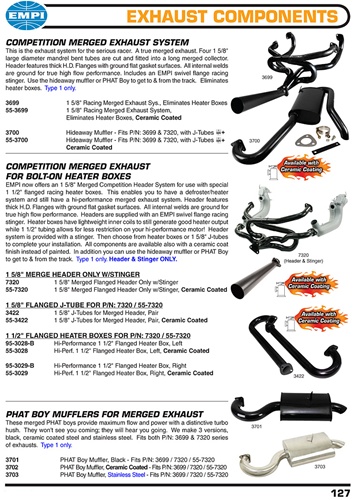

Page 127 exhaust components*:


Qty:
Description

Merged header sedan exhaust and phat boy mufflers for VW Volkswagen

COMPETITION MERGED EXHAUST SYSTEM
This is the exhaust system for the serious racer. A true merged exhaust. Four 1 5/8" large diameter mandrel bent tubes are cut and fitted into a long merged collector. Header features thick H.D. Flanges with ground flat gasket surfaces. All internal welds are ground for true high flow performance. Includes an EMPI swivel flange racing stinger. Use the hideaway muffler or PHAT Boy to get to & from the track. Eliminates heater boxes. Type 1 only.

3699 1 5/8" Racing Merged Exhaust Sys., Eliminates Heater Boxes
55-3699 1 5/8" Racing Merged Exhaust System, Eliminates Heater Boxes, Ceramic Coated

3700 Hideaway Muffler - Fits P/N: 3699 & 7320, with J-Tubes
55-3700 Hideaway Muffler - Fits P/N: 3699 & 7320, with J-Tubes Ceramic Coated

Competition Merged Exhaust for Bolt-on Heater Boxes
EMPI now offers an 1 5/8" Merged Competition Header System for use with special 1 1/2" flanged racing heater boxes. This enables you to have a defroster/heater system and still have a hi-performance merged exhaust system. Header features thick H.D. Flanges with ground flat gasket surfaces. All internal welds are ground for true high flow performance. Headers are supplied with an EMPI swivel flange racing stinger. Heater boxes have lightweight inner coils to still generate good heater output while 1 1/2" tubing allows for less restriction on your hi-performance motor! Header system is provided with a stinger. Then choose from heater boxes or 1 5/8" J-tubes to complete your installation. All components are available also with a ceramic coat finish instead of painted. In addition you can use the hideaway muffler or PHAT Boy to get to & from the track. Type 1 only. Header & Stinger ONLY.

1 5/8" Merge Header Only w/Stinger
7320 1 5/8" Merged Flanged Header Only w/Stinger
55-7320 1 5/8" Merged Flanged Header Only w/Stinger, Ceramic Coated

1 5/8" Flanged J-Tube for P/N: 7320 / 55-7320
3422 1 5/8" J-Tubes for Merged Header, Pair
55-3422 1 5/8" J-Tubes for Merged Header, Pair, Ceramic Coated

1 1/2" Flanged Heater Boxes for P/N: 7320 / 55-7320
95-3028-B Hi-Performance 1 1/2" Flanged Heater Box, Left
55-3028 Hi-Perf. 1 1/2" Flanged Heater Box, Left, Ceramic Coated

95-3029-B Hi-Performance 1 1/2" Flanged Heater Box, Right
55-3029 Hi-Perf. 1 1/2" Flanged Heater Box, Right, Ceramic Coated

Phat Boy Mufflers For Merged Exhaust
These merged PHAT boys provide maximum flow and power with a distinctive turbo hush. They won't see you coming; they will hear you going. We make 3 versions, black, ceramic coated steel and stainless steel. Fits both P/N: 3699 & 7320 series of exhausts. Type 1 only.

3701 PHAT Boy Muffler, Black - Fits P/N: 3699 / 7320 / 55-7320
3702 PHAT Boy Muffler, Ceramic Coated - Fits P/N: 3699 / 7320 / 55-7320
3703 PHAT Boy Muffler, Stainless Steel - Fits P/N: 3699 / 7320 / 55-7320
