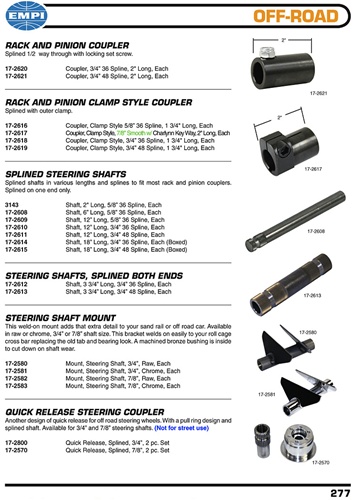

Rack and pinion clamp couplers, splined steering shafts, mounts, quick realease for VW Volkswagen.
RACK AND PINION COUPLER
Splined 1/2 way through with locking set screw.
17-2620 Coupler, 3/4” 36 Spline, 2" Long, Each
17-2621 Coupler, 3/4” 48 Spline, 2" Long, Each
RACK AND PINION CLAMP STYLE COUPLER
Splined with outer clamp.
17-2616 Coupler, Clamp Style 5/8” 36 Spline, 1 3/4" Long, Each
17-2617 Coupler, Clamp Style, 7/8" Smooth w/ Charlynn Key Way, 2" Long, Each
17-2618 Coupler, Clamp Style, 3/4” 36 Spline, 1 3/4" Long, Each
17-2619 Coupler, Clamp Style, 3/4” 48 Spline, 1 3/4" Long, Each
SPLINED STEERING SHAFTS
Splined shafts in various lengths and splines to fit most rack and pinion couplers. Splined on one end only.
3143 Shaft, 2" Long, 5/8” 36 Spline, Each
17-2608 Shaft, 6” Long, 5/8” 36 Spline, Each
17-2609 Shaft, 12” Long, 5/8” 36 Spline, Each
17-2610 Shaft, 12” Long, 3/4” 36 Spline, Each
17-2611 Shaft, 12” Long, 3/4” 48 Spline, Each
17-2614 Shaft, 18” Long, 3/4” 36 Spline, Each (Boxed)
17-2615 Shaft, 18” Long, 3/4” 48 Spline, Each (Boxed)
STEERING SHAFTS, SPLINED BOTH ENDS
17-2612 Shaft, 3 3/4” Long, 3/4” 36 Spline, Each
17-2613 Shaft, 3 3/4” Long, 3/4” 48 Spline, Each
STEERING SHAFT MOUNT
This weld-on mount adds that extra detail to your sand rail or off road car. Available in raw or chrome, 3/4” or 7/8” shaft size. This bracket welds on easily to your roll cage cross bar replacing the old tab and bearing look. A machined bronze bushing is inside to cut down on shaft wear. All have 5 1/8" O.A.L.
17-2580 Mount, Steering Shaft, 3/4”, Raw, Each
17-2581 Mount, Steering Shaft, 3/4”, Chrome, Each
17-2582 Mount, Steering Shaft, 7/8”, Raw, Each
17-2583 Mount, Steering Shaft, 7/8”, Chrome, Each
QUICK RELEASE STEERING COUPLER
Another design of quick release for off road steering wheels. With a pull ring design and splined shaft. Available for 3/4” and 7/8” steering shafts. (Not for street use)
17-2800 Quick Release, Splined, 3/4”, 2 pc. Set
17-2570 Quick Release, Splined, 7/8”, 2 pc. Set
|
